.NET Common Windows Forms Controls Part 1

.NET Common Windows Forms Controls

In this tutorial we will learn about Common Windows Forms Controls in Visual Basic .NET 2005. IN this part 1 of this article, We will be learning the controls like Control Hierarchy, Label, LinkLabel, TextBox, RichTextBox, PictureBox, GroupBox, Panel, Button, CheckBox , RadioButton, ListBox, CheckedListBox and ComboBox.

Control Hierarchy

The base class for all Windows controls is located in the System.Windows.Forms namespace. These controls are built into the .NET framework and form the basis for derived controls. These controls have a distinct hierarchy of their own. For example the hierarchy of the control rich text box is given below:

Object

MarshalByRefObject

Component

Control

TextBoxBase

RichTextBox

We shall take a quick look at some of the properties of the control:

Property

Description

AllowsDrop

Value that decides to accept data dropped in to it

Anchor

Gets/Sets the value of edges of the control to be anchored

BackColor

Gets/sets value of the color of the Background

CanFocus

Returns a value which specifies id the control can receive focus

DataBinding

Gets the data bindings for the control

Parent

Gets/Sets the controls parent container

Visible

Gets/Sets the value determines the visibility of the control

Some of the methods of the control are listed below:

Method

Description

BringToFront

Brings the control to the front of the stacking

Contains

Retrieves a value specifying if the control is a child of this control

Dispose

Releases the resources used by the control

GetType

Gets the type of the control

Hide

Hides the control

Invalidate

Invalidates a part of the control and sends a paint message to the control

DoDragDrop

Starts a drag and drop operation

Some of the events of the control are listed below:

BackgroundChanged

When the value of the backColor property is changed

Click

When mouse is clicked on the control

ControlAdded

When a new control is added

ControlRemoved

When a control is removed

SursorChanged

When the cursor property value ischanged

DragEnter

When an object is dragged into the control’s bounds

Enter

When the control is entered

GotFocus

When the control receives focus

Leave

When the location property value is changed

MouseWheel

When the mouse wheel moves whild the control has focus

VisibleChanged

When the Visible property value is changed

The above list is not exhaustive. However, a designer would find it profitable to get himself acquainted with the properties and methods of the different types of controls that he uses. Derived controls are customized controls that use the .NET framework controls as a base for building upon.

Label

The Label control is used in a number of applications to indicate the nature of the input required or the name of a control or just to convey a message to the user. The autosize property of this control is true by default, but can be dynamically fixed. Since this control cannot receive focus, it can also be used to create access keys for other controls.

Let us see a demo for this activity:

  • Draw the label first, and then draw the other control. Other wise draw the controls in any order and set the System.Windows.Forms.Control.TabIndex property of the label to one less than the other control.
  • Set the label’s System.Windows.Forms.Label.UseMnemonic property to true.
  • Use an ampersand (&) in the label’s System.Windows.Forms.Label.Text property to assign the access key for the label. For more information, see Creating Access Keys for Windows Forms Controls.
  • The following code will accomplish the task. Press F5 and see the demo in action.

Click here for the Sample Code

The output of the above codes is shown in the screenshot pasted below:

Link Labels

This control is similar to the Label Control. In addition to all the properties, methods, and events of the Label control, the LinkLabel control has properties for hyperlinks and link colors. The LinkLabel.LinkArea property sets the area of the text that activates the link. The LinkLabel.LinkColor, LinkLabel.VisitedLinkColor, and LinkLabel.ActiveLinkColor properties set the colors of the link. The LinkLabel.LinkClicked event determines what happens when the link text is selected.

Link Labels are labels that support hyper links. Some of the important properties and events are given below:

Property/Event

Description

ActiveLinkColor

Gets/Sets the color for an active link

DisabledLinkColor

Gets/sets the color for an inactive link

LinkArea

Gets/Sets the range of that will be treated as link

LinkBehaviour

Gets/Sets the value that represents the behavior of a link

LinkColor

Gets/Sets the color of the link

LinkVisited

Gets/Sets the value specifying if a link should be displayed as though it had been visited

VisitedLinkColor

Gets/Sets the color used for the links that have been visited

The following code snippet demonstrates the usage of the link label.

Click here for the Sample Code

TextBox

The hierarchy of the control Text Box is given below:

Object

MarshalByRefObject

Component

Control

TextBoxBase

Text Box

This control is used mainly to collect user input of data and display text. The look and feel and the behavior can be controlled by manipulating the values of its properties, invoking some methods and also handling some of the events that this control is enabled to handle.

Some of the methods, properties and events of the text box are given below:

Property/Method/Event

Description

AutoSize

Sets/Gets value specifying if the control can resize itself automatically.

CanUndo

Return a value specifying if the user can undo the previous operation

Modified

Indicates if the text box control ha been modified by the user since the control was created or its contents were lost

Multiline

Sets/Gets value to determine if this is a multi-line text box control

SelectiedText

Sets/Get value for the currently selected text in the control box

SelectionLength

Sets/Gets value of number of characters selected

TextAlign

Gets/Sets how the test is aligned in the text box

WordWrap

Indicates if a multiline text box control automatically wraps the words

AppendText

Append textx to the current text in the text box

Clear

Clears all the text in the text box

Copy

Copies the selected text to the clipboard

Cut

Copies the selected text to the clip board and clears the text box

Select

Selects the text in the text box

Undo

Undoes the last edit operation in the text box

AutoSizeChanged

When the value of the autosizeproperty is changed

Click

When the text box is clicked

ReadonlyChanged

When the value of the readOnly property changed


{mospagebreak}

RichTextBox

Rich Text Box control is used for displaying, entering and manipulating rich text with formatting. Rich text format (RTF) supports many formats. The following code sample shows the usage of Rich Text Boxes and how we can load TRF documents to them.

Click here for the Sample Code

We shall take a look at some of the methods, properties and events of RichTextBoxes:

Property/Method/Event

Description

DetectUrls

Gets/Sets a value specifying if the rich text box should detect URLs when type into the RichTextBox Control

Rtf

Get/Sets the kind of scroll bars to display in the TichTextBox Control

SelectedRtf

Gets/Sets the currently selected rich text format formatted text in the control

ZoomFactor

Gets/Sets the current zoom level of the rich text box

LoadFile

Loads the contents of a file into the RichTextBox

The events defined for this control are the same as those defined for the TextBox Control.

PictureBox

With the Windows Forms System.Windows.Forms.PictureBox control, you can load and display a picture on a form at design time by setting the System.Windows.Forms.PictureBox.Image property to a valid picture. Acceptable file types which can be any of the following:

Type

File Extension

Bitmap

.bmp

Icon

.ico

GIF

.gif

Metafile

.wmf

JPEG

.jpg

To display a picture at design time

1. Drag and drop a PictureBox control on a form from the ToolBox.

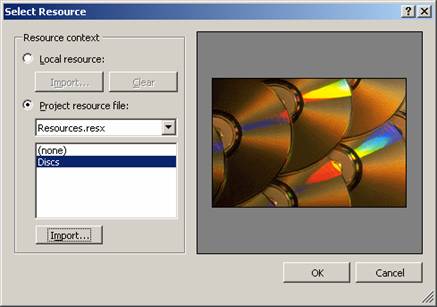

2. On the Properties window, select the Image property, then click the ellipsis button to display the Open dialog box.

3. If you are looking for a specific file type (for example, .gif files), select it in the Files of type box.

4. Select the file you want to display.

To clear the picture at design time

On the Properties window, select the Image property and right-click the small thumbnail image that appears to the left of the name of the image object. Choose Reset.

You can also add picture to the control at runtime and also change the properties at run time to perform activities like, stretching the image. The following lines of code demostrate the tasks like adding picture to the control at run time and also sets value for the PictureBox1.SizeMode as PictureBoxSizeMode.StretchImage.

Press F5 to execute and see the effect.

Click here for the Sample Code

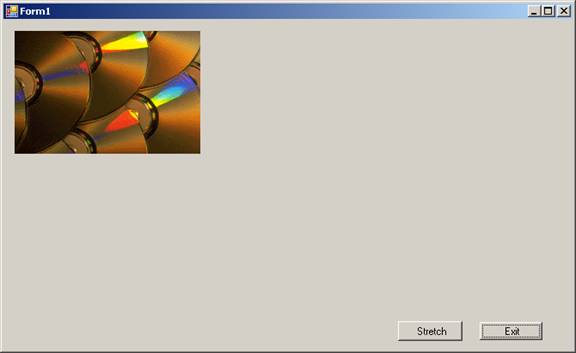

The first screenshot shows the image added to the program at run time using bitmap Object.

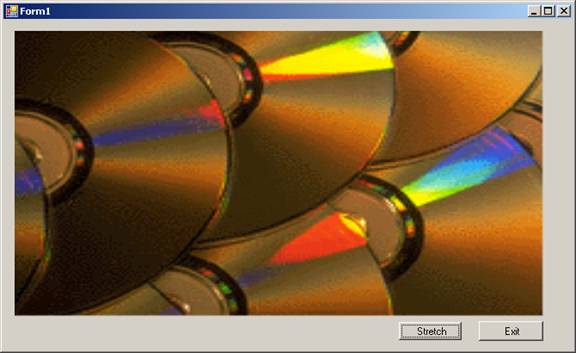

The second screenshot shows the image added to the picture control to display using the method FromFile. The SizeMode of this control is set to stretch causing the image to be stretched.

GroupBox

Windows Forms GroupBox controls are used to provide an identifiable grouping for other controls. Typically, you use group boxes to subdivide a form by function. For example, you may have an order form that specifies mailing options such as which overnight carrier to use. Grouping all options in a group box gives the user a logical visual cue, and at design time all the controls can be moved easily — when you move the single System.Windows.Forms.GroupBox control, all its contained controls move, too. The group box’s caption is defined by the GroupBox.Text property.

Panel

All the features of the GroupBox are applicatble for the Panel control also. Additionally the Panel control can have a ScrollBar while the GroupBox displays the caption.

{mospagebreak}

Buttons

Buttons provide for the most common way of creating and handling events in the code. It exposes the common properties and the methods that help us use this control.

CheckBoxes

Check Boxes are controls that you click to select it and click it again to deselect it. This control can be ideally used when getting user input for answers of the type yes or no. Open a new project and on the Form1 you can add three check boxes, a label and a command button. Type the following codes in the code behind form:

Click here for the Sample Code

The following screenshots illustrate the performance of the program:

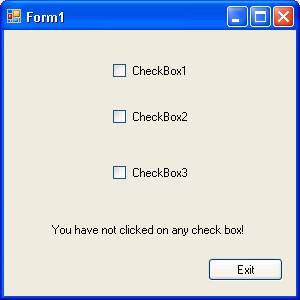

The screenshot shown below shows the initial screen. Note the label message that says that you have not clicked on any of the check box:

The following screenshot shows that the checkbox two is clicked:

The following screenshot shows that the checkbox is unchecked and label message has changed:

RadioButtons

Radio buttons are also checkboxes and the difference lies in the following areas:

1. They are round as against the checkboxes which are square

2. they are used mostly in groups

While checkboxes are used individually, the radiobuttons are use in groups. In case of the radiobuttons, if you check button 3 after clicking button1 the button1 is deselected automatically.

Let us see an illustration: The following code gives the demo for the radiobutton:

Click here for the Sample Code

The following screenshot shows the output:


ListBox

A List box is a useful tool that helps you to display a list of several items from which you can select one or more. A scrollbar is automatically added to the list box when the number of items in the list box increases.

1. To a new Form add a listbox from the toolbox.

2. Locate the property items in the property sheet.

3. Click on the collections on the other side.

4. A new dialog box is opened.

5. Add the items to this dialog box.

6. You must type one item per line.

7. On closing the dialog box the items added to the listbox are available.

8. Enter the following lines of code in the code.

Public Class Form1

Private Sub ListBox1_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles ListBox1.SelectedIndexChanged

Label1.Text = "Item " & ListBox1.SelectedIndex + 1 & " is Selected"

End Sub

End Class

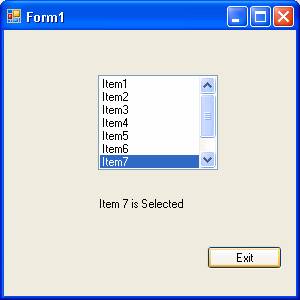

Now if you execute the program by pressing F5, you will see the following output:

You can also add items to the listbox at runtime by using the following line of code:

Listbox1.Items.Add(“Item10”)

In the same way you can also remove the items from the the listbox:

Listbox1.Items.Remove(ListBox1.SelectedItem)

Checked listbox

Checked listbox is derived from standard listbox control. In this case you can see a check box at the side of the item list. To check an item, the user has to double-click a checkbox by default. But you can also do it by single click if you set the CheckOnClick property to true. A screenshot of the application executed is given below:

ComboBox

This control is a frequently used control. This control is made up of two parts. The top part is a text box that allows user to enter data. The other part is a list box that allows the user to select from the items listed. You can allow the user to type in an item or select an item from the list.
